Carp Bite Indication Guide: Alarms, Bobbins & Swingers Explained

You've spent hours choosing the right swim, mixing bait, tying rigs, and casting to the perfect spot. Now you need to know when a carp picks up your hookbait. That's where bite indication comes in — and getting it right is the difference between landing fish and staring at motionless rods all session.

This guide covers everything you need to build a reliable bite indication system: electronic alarms, visual indicators, swingers, bobbins, and how they all work together.

Electronic Bite Alarms: The Core of Your Setup

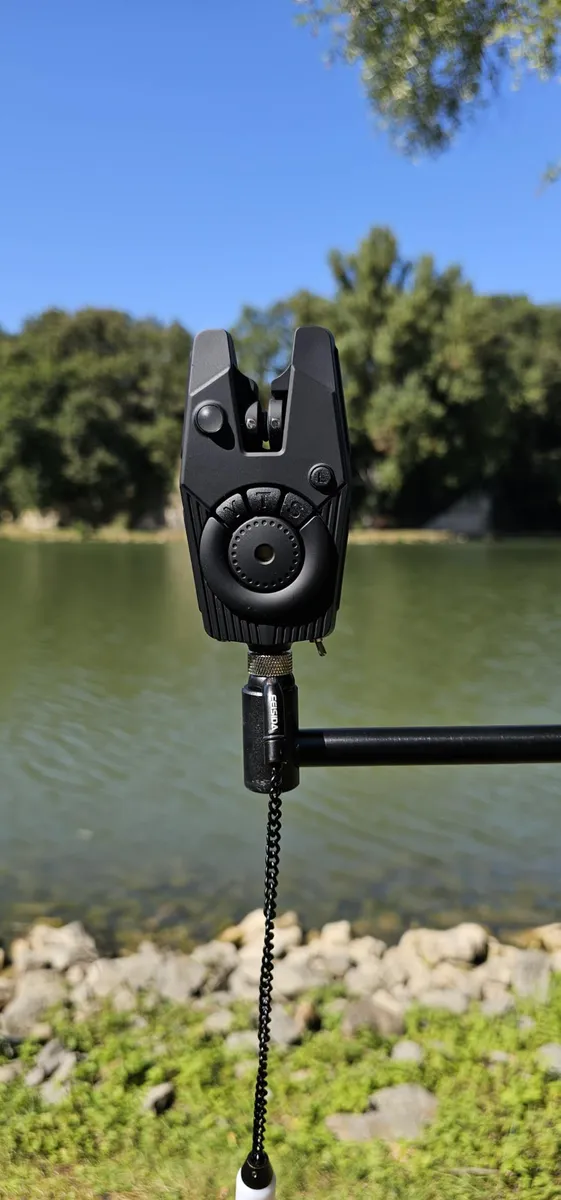

Electronic bite alarms are the foundation of modern carp fishing. They sit between your rod and the rod rest (or rod pod), and the line runs over a roller or sensor wheel on top. When a fish takes line, the roller spins and triggers an audible and visual alert.

Key Features to Look For

Sensitivity control — Adjustable from low (ignoring wind and small fish) to high (detecting the slightest line movement). Most quality alarms offer a dial or digital control with 5-10 increments. Start at medium and fine-tune on the bank.

Tone and volume — Each alarm in a set should produce a different tone so you can identify which rod has the bite without looking. Volume control lets you turn down for daytime sessions or crank up at night.

LED indicators — Coloured LEDs (red, green, blue, purple) light up on a take and often continue flashing for 15-30 seconds after the last bleep, so you can spot a run even if you weren't watching. Look for models with night-light LEDs that glow softly so you can see your rod tips in the dark.

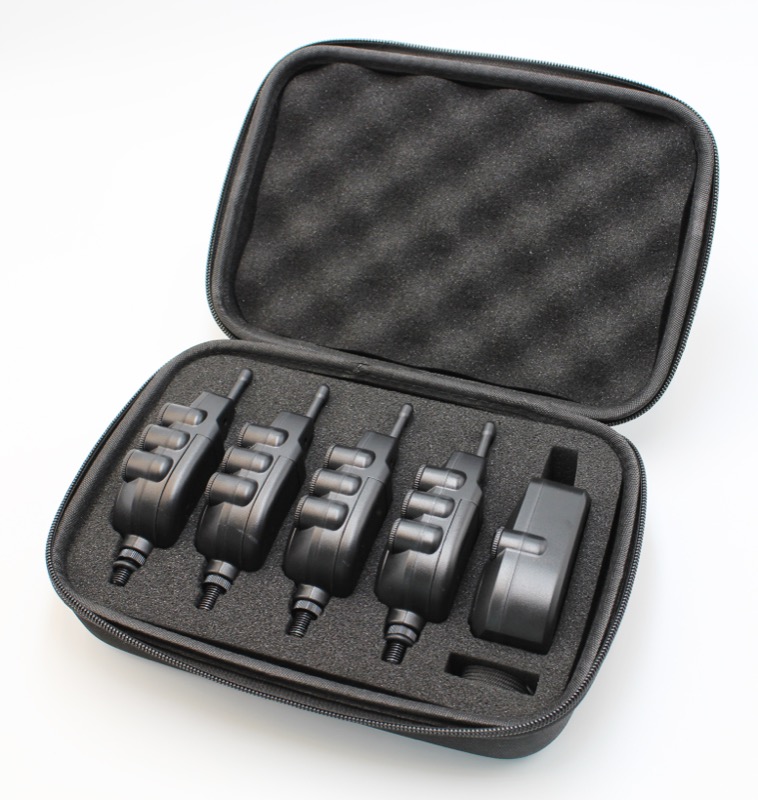

Wireless receiver — A 3+1 or 4+1 alarm set includes a portable receiver that mirrors each alarm's signals. Essential for night fishing when you're inside a bivvy 20 metres from your rods. Range of 100-150 metres is standard; premium units reach 200 metres or more.

Weather resistance — Carp fishing means exposure to rain, dew, frost, and mud. Look for alarms rated at least IPX4 (splash-proof). Better models use rubber gaskets and sealed battery compartments.

Bobbin Indicators: Simple and Effective

A bobbin (also called a hanger) is a weighted clip that attaches to your mainline between the reel and the first rod ring. It hangs below the rod under gravity, and when a carp takes line, the bobbin rises toward the alarm. On a drop-back bite (when the fish swims toward you), the bobbin falls.

Types of Bobbin Indicators

Ball-clip bobbins — The simplest design. A weighted ball or cylinder with a line clip, attached to the rod pod or bankstick by a cord. Cheap, reliable, and easy to use. Weights typically range from 10g to 30g — use heavier bobbins in wind, lighter ones in calm conditions for maximum sensitivity.

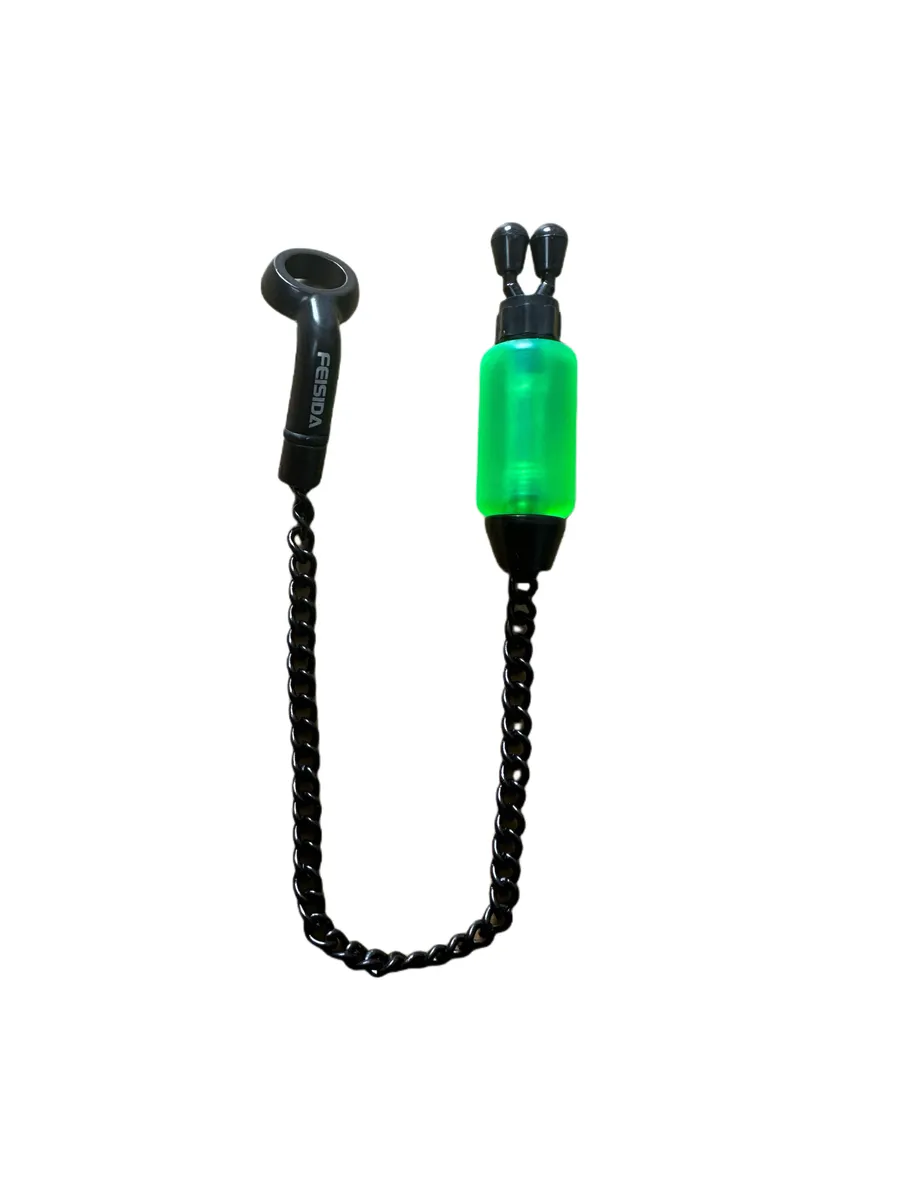

Chain bobbins — A ball-weight attached by a beaded chain rather than cord. The chain adds weight progressively as the bobbin rises, providing increasing resistance. Good for fishing at range or in current where you need line tension.

Illuminated bobbins — Isotope slots or built-in LEDs make bobbins visible at night. Some clip-on isotopes (betalights) glow for 10+ years without batteries. LED versions are brighter but need occasional battery changes.

When to Use Bobbins

Bobbins excel on calm days, short-range fishing, and tight lines. They are the go-to choice for commercial fisheries and day sessions where simplicity matters. Keep a set in your tackle bag as a backup even if you primarily use swingers.

Swingers: Precision Bite Indication

Swingers are the upgrade from bobbins. They use a weighted arm mounted on a hinge bracket that attaches to your rod pod or bankstick. The arm swings upward on a run and drops on a slack-line bite, giving you clear directional information.

Why Swingers Are Better in Tough Conditions

Wind resistance — A bobbin hanging on a cord blows around in wind, triggering false bleeps on your alarm. A swinger's rigid arm stays in position, only moving when the line genuinely pulls. This means fewer false alerts and more confidence in real takes.

Adjustable weight — Most swingers allow you to slide the weight along the arm. Move it toward the tip for maximum sensitivity (slack-line fishing, close range) or toward the hinge for more resistance (long range, strong current, windy conditions). A typical weight range is 15-40g.

Night visibility — Swinger heads often include isotope slots or snap-on LED inserts. Combined with your alarm's LEDs, this gives you a complete visual picture of what every rod is doing in total darkness.

Consistent return — After a false trigger or a missed take, a swinger returns to its resting position automatically. Bobbins can tangle or sit at odd angles after being disturbed.

How to Set Up Swingers

1. Attach the swinger bracket to your rod pod upright or bankstick, below the bite alarm
2. Cast out and place your rod on the alarm
3. Tighten the line with your reel until semi-taut
4. Clip the swinger's line clip onto the mainline between the reel and butt ring
5. Adjust the weight position — the swinger arm should hang at roughly 45 degrees
6. The arm should rise smoothly when you pull line from the spool and drop when you give slack

A 45-degree resting angle gives equal room for the swinger to rise (run bite) and fall (drop-back bite). If the swinger hangs vertically, you have no room to detect drop-backs.

Building a Complete Bite Indication System

The best carp anglers combine multiple indicators for maximum bite detection. Here is a proven setup:

| Component | Purpose | Quantity Needed | |-----------|---------|----------------| | Bite alarms | Audible + LED detection | 3-4 (one per rod) | | Wireless receiver | Remote alert in bivvy | 1 | | Swingers or bobbins | Visual direction indicator | 3-4 (one per rod) | | Rod pod | Stable platform for all gear | 1 |

Matching Your Gear

Your bite indication system should integrate with the rest of your tackle. A balanced setup might include:

• 12ft carp rods at 3-3.25lb test curve for medium to long range
• Big pit reels (8000-10000 size) with smooth drag for running fish
• 15lb monofilament mainline or 30lb braid with a leader
• Sharp hooks — because none of this matters if the hook doesn't stick
• Quality rigs baited with proven hookbaits — pop-ups, wafters, or bottom baits
• A bait boat for precise long-range placement when casting isn't practical

Pro Tips for Better Bite Indication

1. Tighten your clutch, loosen your line. Set the reel's baitrunner so a carp can take line freely without pulling the rod in. Then adjust line tension so your swinger sits at that 45-degree sweet spot.

2. Use back leads in wind. A back lead sinks your line between the rod tip and the lake, reducing bow and wind drag. This makes your bobbins and alarms more accurate.

3. Listen to single bleeps. A single bleep isn't always wind. It can be a carp mouthing your bait, a liner (fish swimming through your line), or a tentative take. If you get repeated singles, your rig is in the right area — be patient.

4. Check your batteries. There is nothing worse than a dead alarm at 3am during a 48-hour session. Carry spare CR2 or 9V batteries (depending on your alarm model) and change them before every major trip.

5. Clean the roller. Dirt, grit, and dried algae on the alarm's sensor roller reduce sensitivity. Wipe it with a damp cloth before each session.

---

Frequently Asked Questions

What is the best bite alarm sensitivity setting for carp fishing?

Start with medium sensitivity and adjust based on conditions. In calm weather, use high sensitivity to detect subtle liners and gentle takes. In wind or rough water, reduce sensitivity to avoid false bleeps — a setting around 60-70% works well. Most quality alarms offer adjustable tone, volume, and sensitivity dials. For night fishing, pair your alarm with a receiver unit so you can hear takes from inside your bivvy.

Do I need swingers or bobbins with bite alarms?

Yes. Bite alarms detect line movement, but a visual indicator like a swinger or bobbin shows the direction and speed of the take. A swinger hanging below the rod will rise on a run and drop on a drop-back bite. Without a visual indicator, you may miss subtle takes or fail to distinguish between a real bite and wind interference. A complete bite indication system uses both electronic and visual components together.

What is the difference between a swinger and a bobbin indicator?

A swinger uses a weighted arm on a hinge that swings upward when a fish takes line. It provides consistent tension and returns to position after false triggers. A bobbin (or hanger) clips to the line between the reel and first rod ring and hangs by gravity. Bobbins are simpler and cheaper but can blow around in wind. Swingers are more precise and better for serious sessions, especially at night or in windy conditions.

How many bite alarms do I need for carp fishing?

Most carp anglers use 3 or 4 bite alarms — one per rod. In the UK, a standard setup is 3 rods on a rod pod with 3 alarms. Some European venues allow 4 rods. Buy a matched set (3+1 or 4+1 with a receiver) for consistent tone differentiation between rods. Budget anglers can start with 2 alarms and add more as they expand their setup.

Can I use bite alarms without a rod pod?

Yes. Bite alarms screw into standard banksticks using a 3/8 BSF thread, which is the universal fitting for all carp fishing alarms and rod rests. Banksticks work well on soft ground — simply push them into the bank at the correct angle. A rod pod is only necessary when the ground is too hard for banksticks (concrete, rock, wooden platforms) or when venue rules require them. Many experienced anglers prefer banksticks for their flexibility in positioning.

---
